Product Overview
Our indoor padel court is integrated with professional linear lighting systems, tailored for indoor sports venues, training centers and competition venues. The matched LED linear lights deliver soft and even illumination, effectively eliminating glare and dark areas on the court.

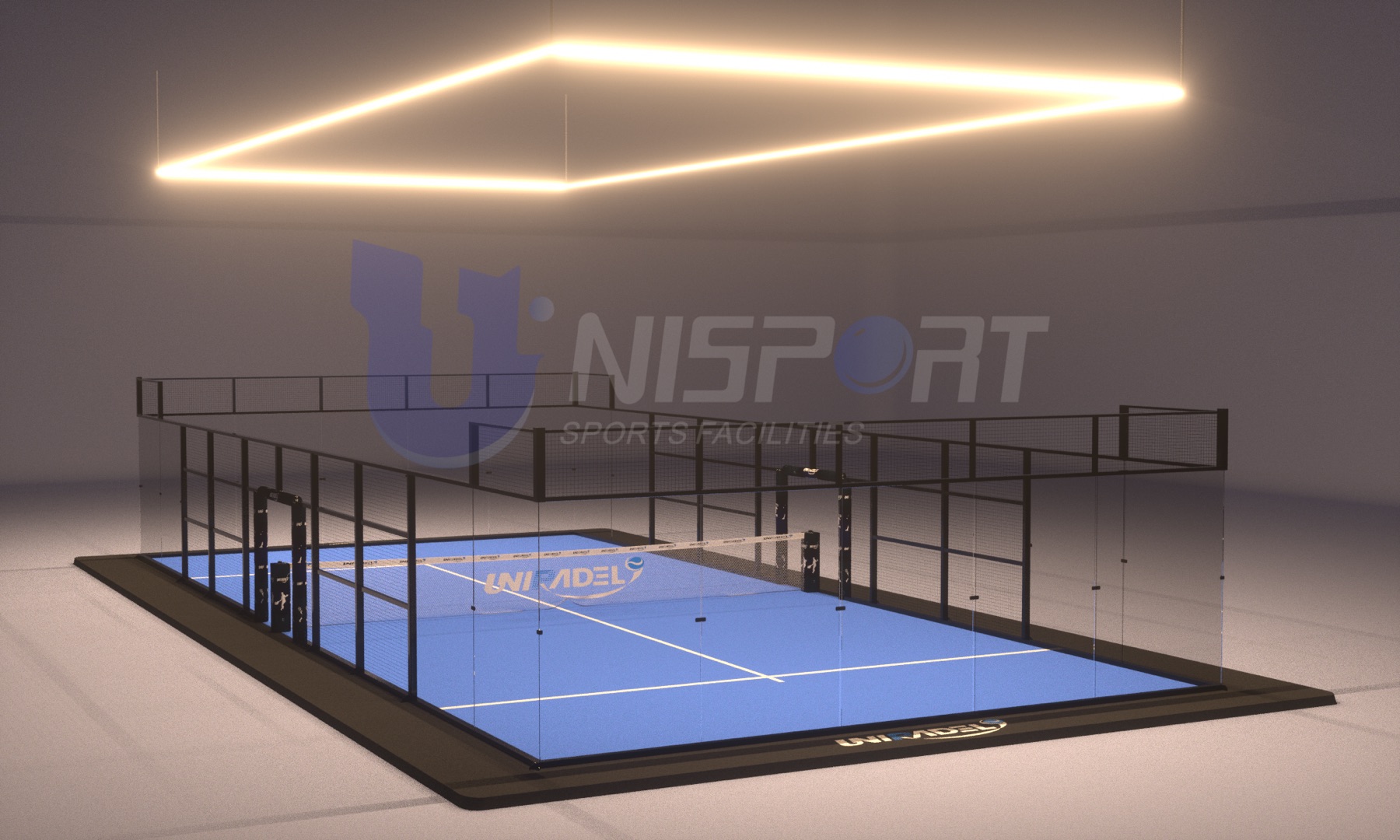

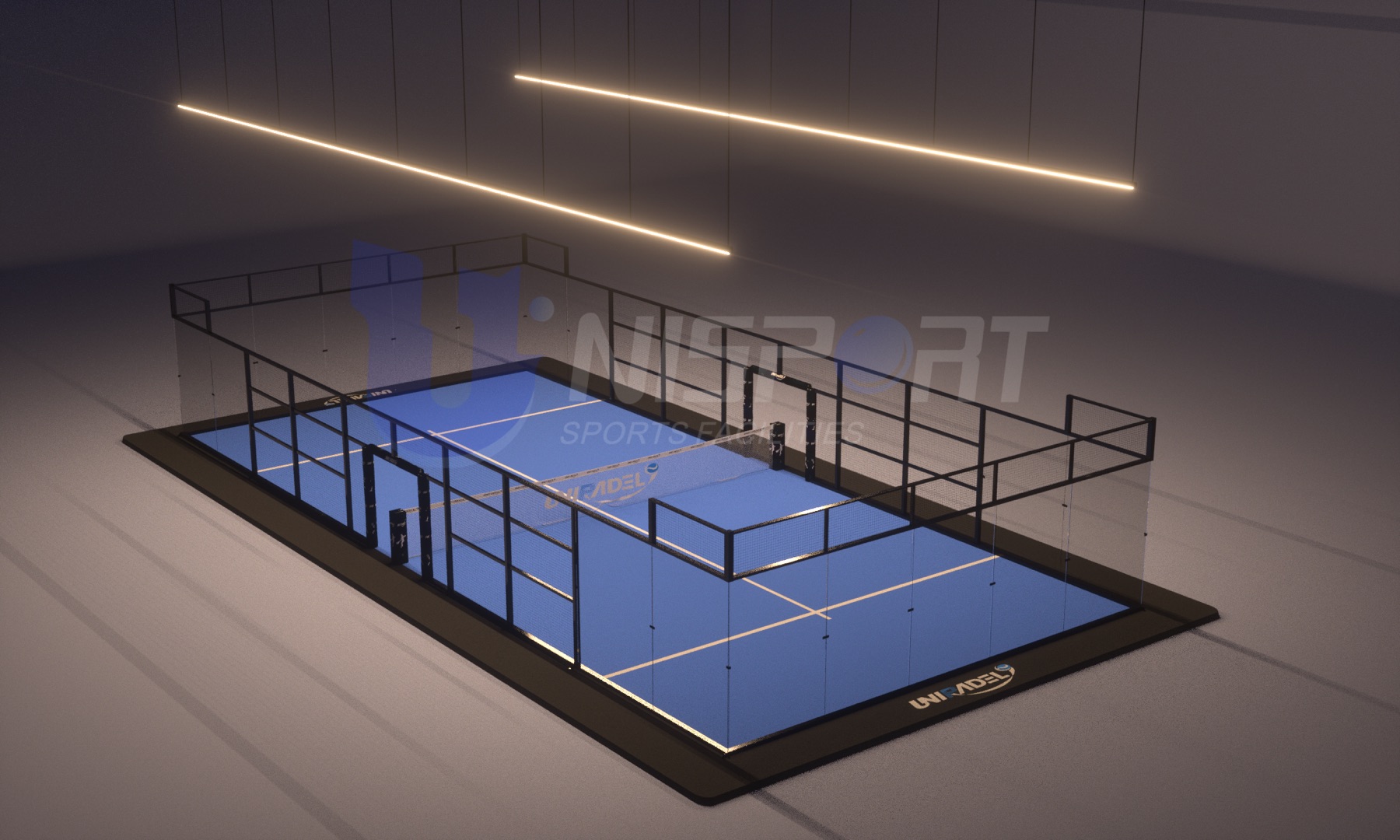

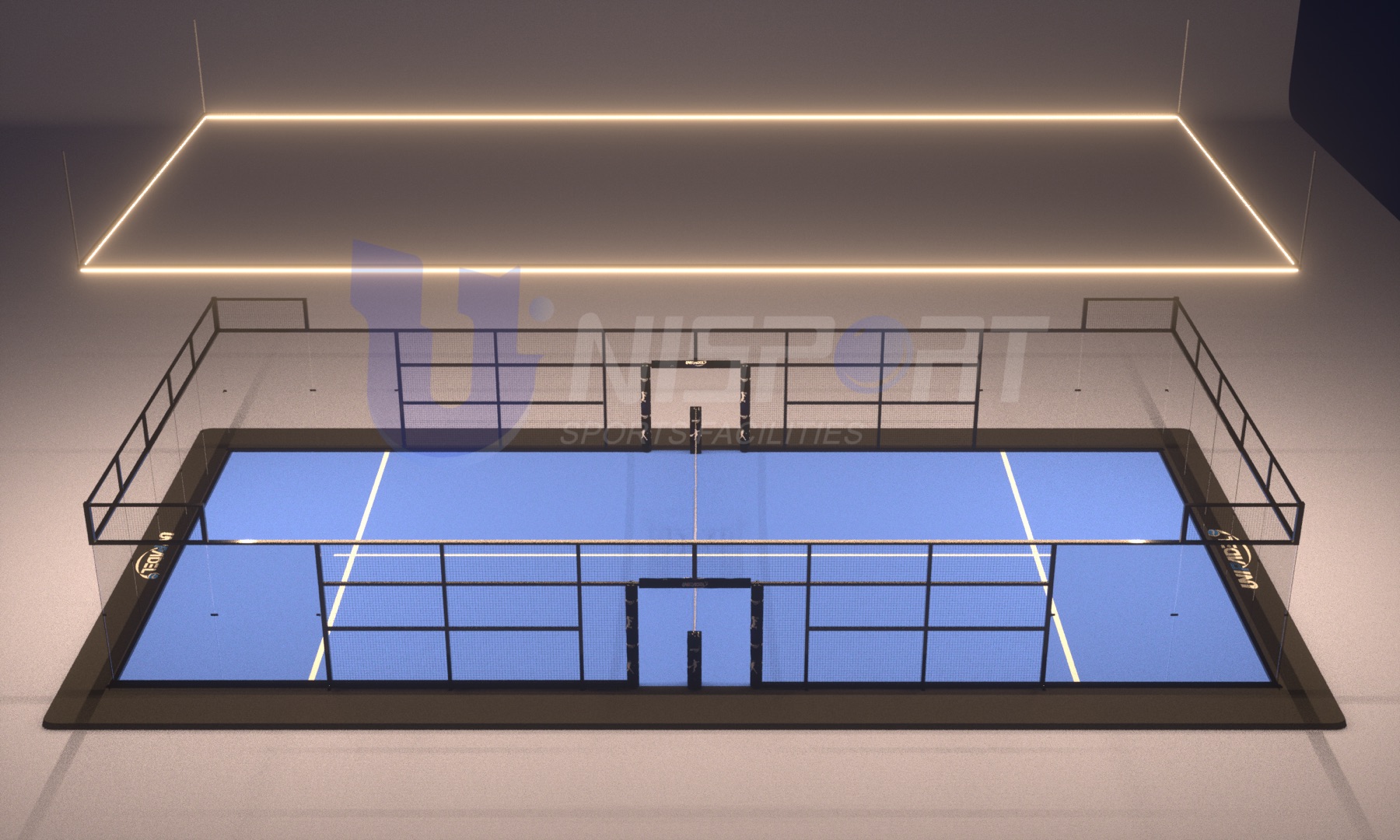

We offer two practical lighting layouts: full-surround linear lights and side-mounted linear lights, which can be selected according to venue layout, usage scenarios and budget. With well-designed installation height and light emitting angle, the whole set creates a standard, safe and comfortable lighting environment for padel sports.
High-purity aluminum heat sink and high-performance PCB board accelerate heat dissipation efficiently, reduce light decay and greatly extend the service lifespan of the lights.
Linear Light Specifications
• Light Output: ≥8400 Lm for bright, even court coverage
• IP Rating: ≥IP54, rated to resist dust and moisture in indoor venues
• Power Rating: 60W low-energy LED light bar
• Working Voltage: AC 220V standard power input
• CCT Options: 4000K / 5000K / 6000K, customizable to match your venue’s ambiance
• Material: Aluminum alloy housing + tempered glass
• Dimming Control: 0-10V dimmable for flexible brightness adjustment
• Overall Size: 1182*64mm
This linear light adopts modular suspension installation for easy assembly.
Firstly, fix the supporting fasteners on 50×50 metal square tubes at an interval of 1.2 meters. Then insert and lock the linear light bars into the fasteners to form a complete lighting unit.

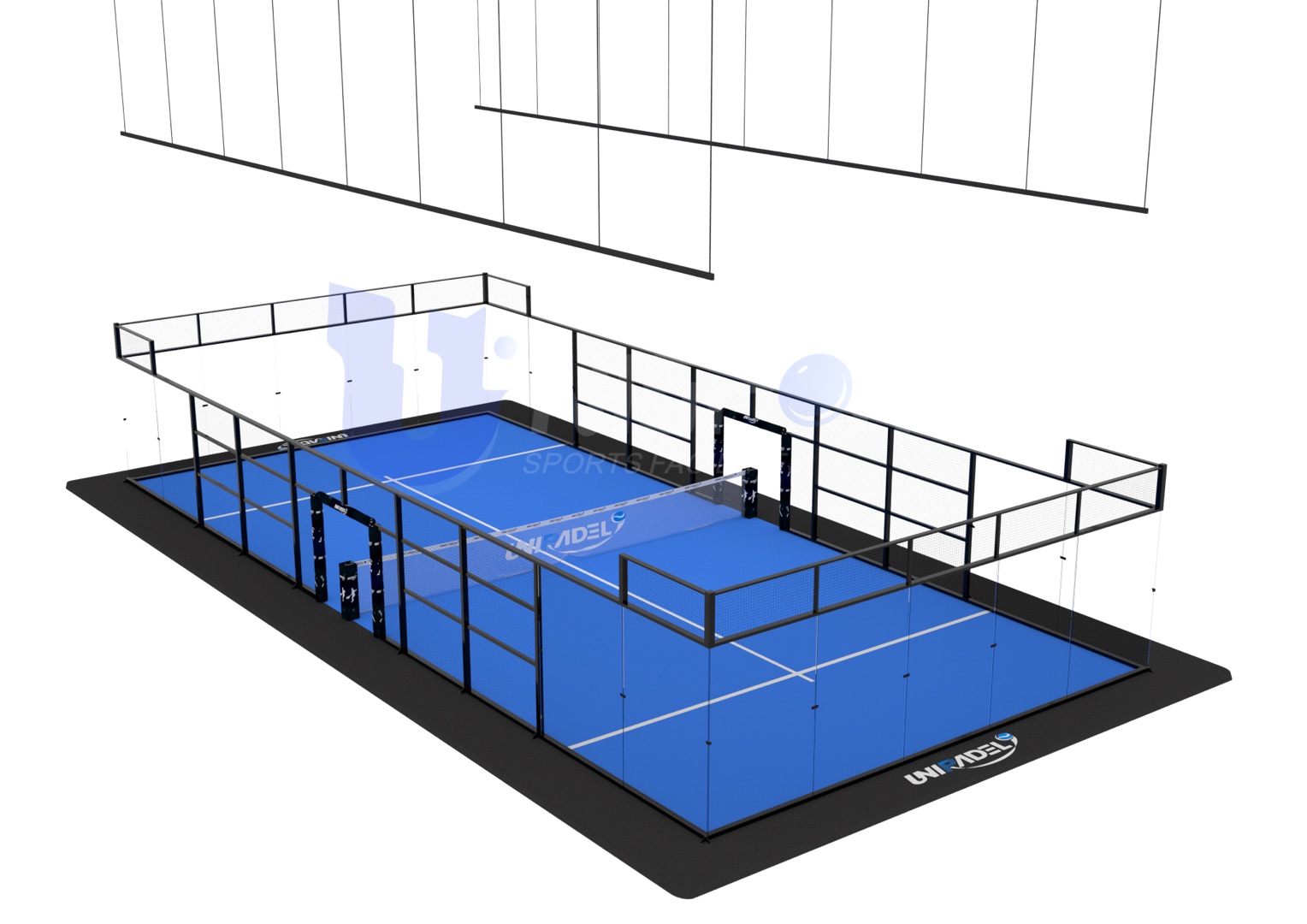

Next, hang the assembled square tubes on the ceiling via dedicated lifting chains, and adjust the chain length to keep the lights horizontal. Before installation, cut the square tubes based on actual on-site dimensions and reserve splicing allowance to ensure stable structure and uniform lighting effect.
