UNI - Panoramic Padel Court Roof

Item No.: 00302
The panoramic padel court roof design can regulate the temperature inside the court to a certain extent, especially in hot summer and cold winter, providing a more suitable sports environment and improving the comfort of players.
Description Project Specification Review
Description

Roof offers good creativity

Padel court's uniquely designed fixed roof is designed to create an ideal venue for padel to host matches day and night, in sunny or even stormy weather conditions. This innovative solution aims to overcome the limitations of outdoor courts in harsh climates and improve the profitability of the courts.

Provides firmness and protection from sun and rain

The fixed roof uses a strong aluminum frame as a supporting structure, which is covered with high-quality PVC cloth, while an alternative roof is also available - a top constructed from a combination of hot-dip galvanized steel and PVC. This design not only ensures the stability and durability of the roof, but also provides the stadium with the versatility and flexibility to adapt to a variety of playing and weather conditions.

Have a very comfortable and safe racing experience

The introduction of the padel court fixed roof provides fans and athletes with a more comfortable and safer competition environment, and brings new business opportunities to stadium operations.
Project

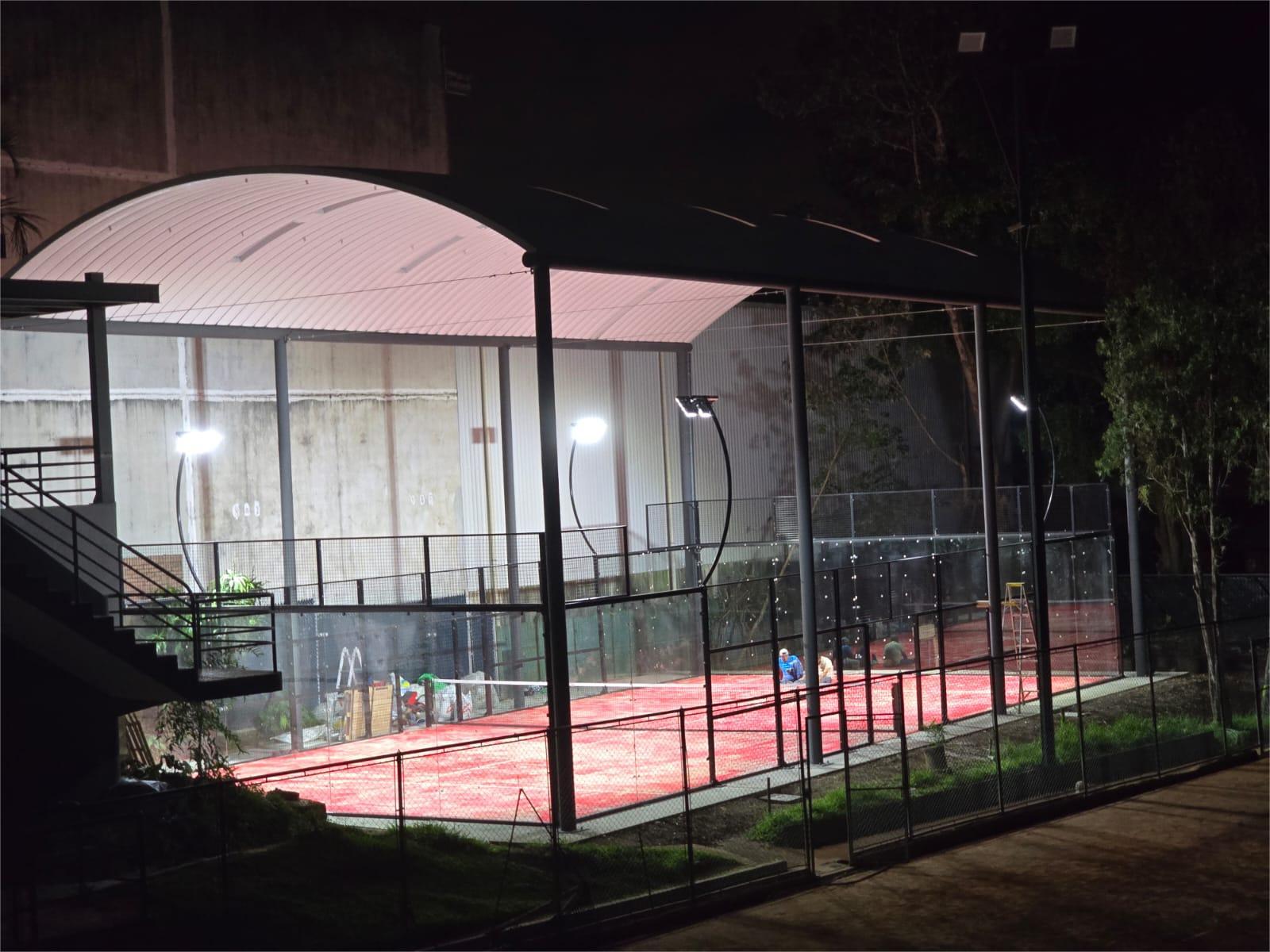

Panoramic Padel Court Roof projects around the world

The panoramic roofed padel court combines modern design, high-quality materials and advanced technology. It has strong weather resistance, excellent lighting, and good viewing experience. It is suitable for all kinds of competitive and leisure scenes.

GZUNISPORT Panoramic Roofed Padel Court has been installed in Latin America, Europe and the Middle East. With international standard production technology, fast delivery and high-quality service, it has won the recognition of global customers. Whether it is a club, resort or private investor, they can build a first-class padel sports venue through our products.
Specification

Panoramic Padel Court Roof Specification

Padel court dimensions
Court dimensions: 20m × 10m, rectangular layout.
Side wall/back wall height 3m, front wall (net side) height 2m.

Frame and structure
Hot-dip galvanized Q235B steel structure, in line with GB/T6728-2017 standard.
650g/m² galvanized layer, with double anti-corrosion and anti-rust performance after spraying.

Tempered glass
12mm thick tempered glass (1990mm × 3000mm/piece), in line with EN12150-2:2004 standard.
Light transmittance 87%, impact strength is 4 times that of ordinary glass, and can withstand 110℃ temperature difference.

LED lighting system
Adopts Mean Well power supply + high-end lamp beads, 200W power, luminous efficiency ≥120LM/W, life ≥50000 hours.
Protection level IP65, temperature range -25℃~+45℃.

Integrated padel court roof
Aluminum alloy main beam (150×80×4.0mm), PVC tarpaulin 0.6mm, side height 6m, center height 8m.
The roof is fixed on the columns at the four corners of the court.

Separate padel court roof
The structure is the same as above, but the four corner columns are separated independently, and the four columns are rebuilt to support the roof.
