Classic Padel Court Roof Specification
Court size: The padel court is rectangular, 20m × 10m in size, with 3m high side and back walls and 2m high front wall (net side).
Frame structure: Hot-dip galvanized Q235B steel, thick galvanized layer, sprayed with double anti-corrosion. Column 80x60x3mm, frame column 50x30x2mm, mesh 50x50x4mm, crossbar 150x50x3mm, lamp arm 50x50x3mm.
Glass configuration: 12mm tempered glass (1990mm × 3000mm) is used, which meets the EN12150-2:2004 standard, with an impact strength 4 times that of ordinary glass and a light transmittance of 87%.
LED lighting system: 200W LED lamps are used, with luminous efficiency ≥120LM/W, luminous flux >24000Lm, color temperature 5700K, protection level IP65, life ≥50000 hours, suitable for all-weather use.

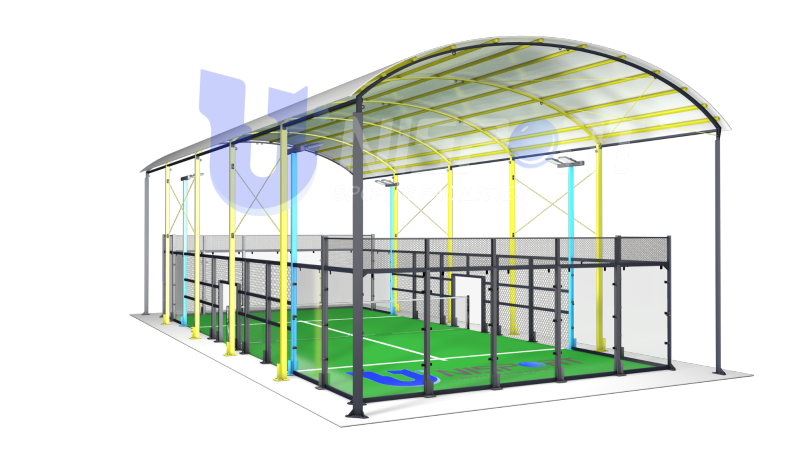

Padel court integrated roof: main beam 150804.0mm aluminum alloy, cross beam 50502.5mm, column 150804.0mm, PVC 0.6mm tarpaulin, the four corners of the court extend the columns to support the roof, the side height is 6m, and the center height is 8m.
Padel court separated roof: the structure is the same as the integrated roof, but the roof is supported by four independent columns, which is separated from the court frame to enhance the adaptability of the venue.
Our turnkey installation process ensures your roofed padel court is up and running quickly:
• Site Assessment: Our team evaluates your location, climate, and court layout to recommend the best padel court roofing design.
• Custom Manufacturing: Your roof is built to your exact specifications in our factory, with quality checks at every stage.
• Delivery & Assembly: We ship all components pre-cut and pre-drilled for fast, on-site assembly. Most standard roofed courts are installed in just 3-5 days.
• Final Inspection: Our team conducts a full safety and functionality check to ensure everything meets our quality standards.
Keep your padel court roofing in top condition with these simple, low-effort steps:
• Monthly Checks: Inspect the roof fabric for tears, loose fasteners, or debris buildup. Clear leaves and dirt from drainage holes to prevent water pooling.
• Annual Cleaning: Wash the roof fabric with mild soap and water to remove dirt, mold, and stains. Avoid harsh chemicals that can damage the UV coating.
• Seasonal Prep: Before storm or snow seasons, tighten loose bolts and check the structural frame for signs of wear. For snowy climates, gently brush snow off the roof to avoid excess weight.
1. What are the main benefits of adding a roof to a padel court?
A padel court roof unlocks year-round play by protecting against rain, sun, and wind, extends the lifespan of your court components, and allows for evening play with integrated lighting. For commercial facilities, this translates to higher booking rates, increased revenue, and a competitive edge in the market.
2. Can you add a roof to an existing padel court?
Yes! Our freestanding padel court roofing is specifically designed for retrofitting existing padel courts. It requires no modifications to your original court frame and can be installed on nearly any standard or non-standard layout.
3. How much does a custom padel court roof cost?
The cost of a padel court roof varies based on factors like design type, materials, size, and location.
4. How long does a padel court roof last?
With proper maintenance, our high-quality padel court roofing has a lifespan of 10 years.
5. Can I customize the design of my padel court roof?
Absolutely! We offer full customization for our padel court roofing, including different colors, logos, and sizes.
